Original Scan Settings

Specifying the original size ([Scan Size])

When the size of the original is not detected correctly, specify the size of the original you want to scan.

Scanning a 2-sided original ([Duplex Settings])

Select whether to scan one side or both sides of the original.

Setting

Description

[Simplex/Duplex]

Select the side to scan the original (Simplex/Duplex).

[Binding Position]

Select the binding position of the original when scanning both sides of the original.

  • [Auto]: The binding position of the original is specified automatically. When the long side of the original is 11-11/16 inches (297 mm) or less, the binding position is set to the long side of the paper. When the long side of the original exceeds 11-11/16 inches (297 mm), the binding position is set to the short side of the paper.

  • [Left Bind]: Select this option when the binding position is set to the left of the original.

  • [Top Bind]: Select this option when the binding position is set to the top of the original.

Scanning a number of originals in several batches ([Separate Scan])

If the number of original sheets is so large that they cannot be loaded into the ADF at the same time, you can load them in several batches and handle them as one job. You can also scan the original using both ADF and Original Glass alternately.

  1. Load the original.

    • Do not load more than 300 sheets (21-1/4 lb (80 g/m2)) at a time into the Original Tray of the ADF, and do not load the sheets up to the point where the top of the stack is higher than the mark. Doing so may cause an original paper jam, original damage, or ADF failure.

  2. Set [Separate Scan] to ON.

  3. Use the Start key to start scanning.

  4. Load the next original.

    • If necessary, tap [Change Setting] to change the scan settings.

  5. Use the Start key to start scanning.

  6. Repeat steps 4 and 5 to scan all the originals.

  7. After all originals have been scanned, select [Finish].

  8. Use the Start key to start transmission.

  • [Separate Scan from Platen] (Here)

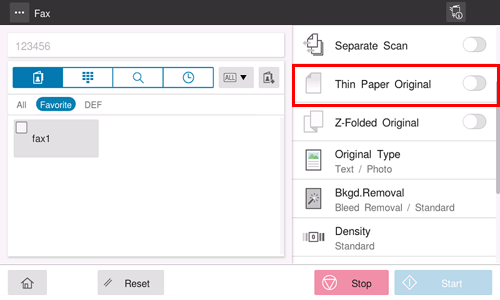

Scanning an original that is thinner than plain paper ([Thin Paper Original])

When scanning an original that is thinner than plain paper on the ADF, set this option to ON. This function reduces the original feed speed of the ADF to prevent thin paper from getting caught.

Scanning originals with folds ([Z-Folded Original])

If a folded original is loaded into the ADF, the original size may not be able be detected accurately. To scan the folded original on the ADF, set this option to ON.

Scanning originals of different sizes ([Mixed Original])

Even for an original with pages of different sizes, by using the ADF, you can scan data while detecting the size of each page. If the widths of the originals are the same, select [Same Width]. If the widths of the originals are different, select [Different Width].

Attaching a TX stamp to the scanned original ([TX Stamp])

When scanning originals using the ADF, a TX Stamp is printed on a scanned original to certify that the original has been scanned.

  • Exercise care not to use this function for an original that you do not want to get dirty.

  • To use this function, an option is required. For details on the required option, refer to Here.

  • The ink used for stamping is a consumable. If the ink becomes faint, contact your service representative.
