Specifying a Destination

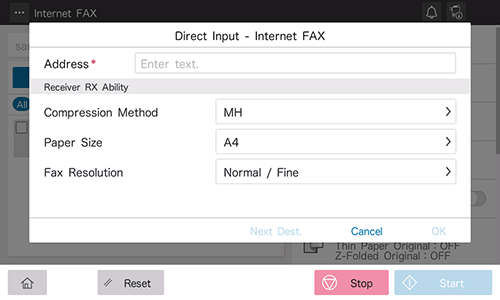

Directly entering the destination

Directly enter destination information.

  1. Tap [+].

  2. Enter destination information.

    Setting

    Description

    [Destination]

    Enter the E-mail address of the destination (using up to 320 characters, excluding spaces).

    [Receiver RX Ability]

    Specify the Internet fax receiving ability of the recipient.

    • [Compression Type]: Select a compression type available for the destination machine.

    • [Paper Size]: Select a paper size available for the destination machine.

    • [Fax Resolution]: Select a resolution available for the destination machine.

  3. Tap [OK].

Using Address Book

Selecting the Destination tab () displays a list of destinations registered on this machine. Switch the display using an index, and specify the target destination. For details, refer to Here.

Searching for the registered destination

Tapping the Search tab () displays the destination search screen. If a large number of destinations are registered, the system searches for the registered name of the destination or characters of the address to find the target destination. For details, refer to Here.

Specifying the target from the destinations registered in the LDAP server (LDAP Search)

Tapping the Search tab () displays the destination search screen. If the LDAP server or the Active Directory of Windows Server is used for user management, you can search for destination information registered in the server and specify the desired destination. For details, refer to Here.

Using Job History

Tapping the History tab () displays a list of transmission logs. Specify the target destination from the previous five job histories. For details, refer to Here.
