Center Staple Position

To display:
  • [Utility]
    • [Expert Adjustment]
      • [Finisher Adjustment]
        • [Center Staple Position]

If the staple position is not on the fold line on saddle-stitched paper, use this option to align the staple position on the fold.

Copy after configuration, then repeat adjustments as required.

Setting

Description

[Paper Size]

Select the size of paper that is used to adjust the staple position.

[Adjust Value]

Enter the adjustment value between -10.0 mm and 10.0 mm (default: [0.0 mm]).

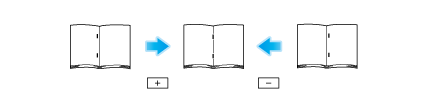

Increase the value when moving the staple position rightward, and reduce it when moving the staple position leftward.

  • This setting is displayed when the option is installed in this machine. For details on the required option, refer to Here.

  • Adjust the half-fold position before adjusting the center staple position.

  • Make adjustment while checking paper stapled at a displaced position.

  • The value you set by selecting [All] in [Paper Size] will be added to the setting for each paper size.

  • For adjustments to put staples parallel with the left edge of paper, contact your service representative for instructions.
