Half-Fold Position

To display:
  • [Utility]
    • [Expert Adjustment]
      • [Finisher Adjustment]
        • [Half-Fold Position]

If the half-fold position is not on the exact center of the paper, use this option to align the fold on the center.

Copy after configuration, then repeat adjustments as required.

Setting

Description

[Paper Size]

Select the size of paper that is used to adjust the fold position.

[Adjust Value]

Enter the adjustment value between -10.0 mm and 10.0 mm (default: [0.0 mm]).

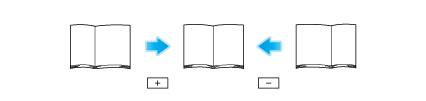

Increase the value when moving the folding position rightward, and reduce it when moving the folding position leftward.

  • This setting is displayed when the option is installed in this machine. For details on the required option, refer to Here.

  • Adjust the half-fold position before adjusting the center staple position.

  • Make adjustment while checking paper folded at a displaced position.

  • The value you set by selecting [All] in [Paper Size] will be added to the setting for each paper size.

  • For adjustments to put the fold position parallel with the left edge of paper, contact your service representative for instructions.
