1st Tri-Fold Position Adjustment

To display:
  • [Utility]
    • [Expert Adjustment]
      • [Finisher Adjustment]
        • [1st Tri-Fold Position Adjustment]

If the tri-fold positions are not located evenly, use this option to adjust the first fold position.

Copy after configuration, then repeat adjustments as required.

Setting

Description

[Paper Size]

Select the size of paper that is used to adjust the fold position.

[Adjust Value]

Enter the adjustment value between -10.0 mm and 10.0 mm (default: [0.0 mm]).

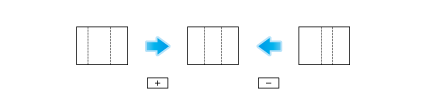

Increase the value when moving the folding position rightward, and reduce it when moving the folding position leftward.

  • This setting is displayed when the option is installed in this machine. For details on the required option, refer to Here.

  • Make adjustment while checking paper folded at a displaced position.

  • The value you set by selecting [All] in [Paper Size] will be added to the setting for each paper size.
