Punch Vertical Position Adjustment

To display:
  • [Utility]
    • [Expert Adjustment]
      • [Finisher Adjustment]
        • [Punch Vertical Position Adjustment]

If the positions of the punch holes on the paper are displaced vertically, use this option to adjust the punch hole positions.

Copy after configuration, then repeat adjustments as required.

Setting

Description

[Paper Size]

Select the size of paper subject to punch hole position adjustment.

[Adjust Value]

Enter the adjustment value between -5.0 mm and 5.0 mm (default: [0.0 mm]).

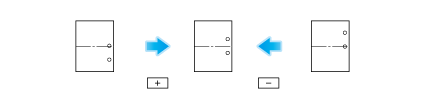

Increase the value when moving the punching hole upward, and reduce it when moving the punching hole downward.

  • This setting is displayed when the option is installed in this machine. For details on the required option, refer to Here.

  • Make necessary adjustments while checking a sheet of paper containing punched holes that are not in the correct positions.

  • The value you set by selecting [All] in [Paper Size] will be added to the setting for each paper size.
