Horizontal Punch (Z-Fold) Position Adjustment

To display:
  • [Utility]
    • [Expert Adjustment]
      • [Finisher Adjustment]
        • [Horizontal Punch (Z-Fold) Position Adjustment]

When Z-fold and punch are specified together, use this option to adjust a punch hole misalignment.

If the positions of the punch holes on the paper are displaced sideways, use this option to adjust the punch hole positions.

Copy after configuration, then repeat adjustments as required.

Setting

Description

[Adjust Value]

Enter the adjustment value between -5.0 mm and 5.0 mm (default: [0.0 mm]).

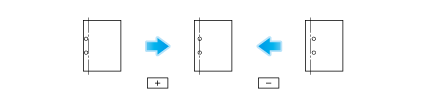

Increase the value when moving the punching hole rightward, and reduce it when moving the punching hole leftward.

  • This setting is displayed when the option is installed in this machine. For details on the required option, refer to Here.

  • Make necessary adjustments while checking a sheet of paper containing punched holes that are not in the correct positions.
